The electronics industry needs detailed tracking methods for small surface-mount device parts. Efficient handling of SMD components keeps production running at top speed while protecting inventory accuracy. Using existing methods to count SMD reels creates errors and ineffective workflows, slowing production and increasing expenses. X-ray reel counters help achieve automated SMD component tracking systems that work well.
The Need for Precision in SMD Component Counting
Our modern electronic devices contain elaborate printed circuit boards filled with intricate components. Manual counting produces too many mistakes because small components need accurate measurement to work correctly. Using human hands to count items takes too long and leads to errors while lowering operational efficiency. Automated X-Ray Reel Counter System solves these problems by counting parts fast and reliably. Our system reduces manufacturing delays and helps keep product costs under control while maintaining smooth inventory operations.
How X-Ray Reel Counter Systems Work
Constant X-ray imaging helps quickly detect and precisely count small parts on stock reels. High-resolution X-ray scanning checks every component on the reel for accurate counts. By penetrating all packaging layers, X-ray technology guarantees correct counts even if components are in disorganised arrangements. The system uses detailed captured images plus AI software to produce exact results. The system provides consistent results that help us avoid running out of supplies while keeping the right amount on hand.
Key Features of Advanced X-Ray Reel Counter Systems
Modern X-ray reel counter systems bring advanced technology to improve operational effectiveness. Deep learning AI algorithms boost our counting speed while making it more precise. Our equipment can process multiple reels simultaneously, shortening overall working hours. Our systems connect with MES, ERP, and WMS platforms to automatically deliver instant inventory updates and complete data handling. Our systems meet top safety standards, including ISO 9001, CE, ROHS, and FDA-CDRH quality regulations for radiation protection. Digital records of the counting process help companies track their operations and meet quality and regulatory standards.

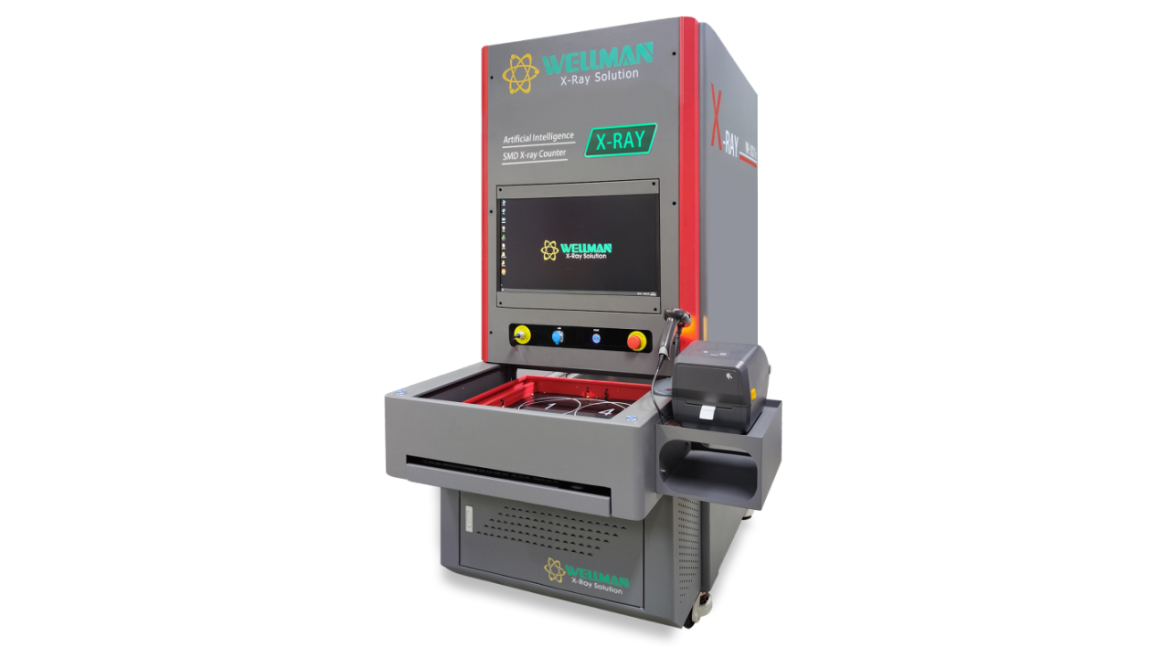

The XC-01 X-ray reel counter system demonstrates current technology breakthroughs. The system includes an 80kV closed-type X-ray tube that ensures low maintenance and extended durability. Our system has a 17-inch high-definition digital flat panel detector that provides exceptional image quality. This system can analyse four 7-inch reels or one 15-inch reel in under ten seconds because of its fast scanning speed. The unit handles 17-inch reel sizes, including items stored in moisture barrier bags. AI deep learning technology improves results automatically while seamless connections to MES, ERP, and WMS networks boost overall work processes.
The X-Ray Reel Counter system improves production efficiency.
The adoption of X-ray reel counters helps companies follow lean manufacturing practices. The automatic counting system saves work hours while reducing human mistakes and assisting tasks to run faster. Our system fixes product counting delays so our production lines keep moving without delays. Our system keeps inventory data up-to-date while helping us make better decisions. Our effective material tracking saves resources and money through better material use.
XC-01 makes scans and counts automatically to make organisation easier. The system automatically prints labels as reel removal happens so users avoid manual data entry and errors. The system handles work order numbers so teams can create detailed reports based on statistical measurements. The system’s capabilities help companies run their production plants more effectively and economically.
Safety and Compliance Considerations
X-ray reel counter systems protect workers from radiation risks while guaranteeing that processes meet international safety requirements. Our business follows ISO 9001, ROHS, and FDA-CDRH standards to meet their strict safety and quality regulations. These systems produce less than 1μsV/h of radiation, preventing significant exposure and eliminating health risks.
Manufacturing safety procedures keep employees safe during work activities. These systems work as closed X-ray cabinets that block radiation from reaching operators. Modern X-ray reel counters produce just one-fifth to one-tenth of the five millirems radiation level permitted at 2 inches from the device surface under FDA-CDRH standards. Workers are adequately trained in safety procedures and use systems correctly to create a secure electronics production environment.
Future Trends and Innovations in X-Ray Component Counting
Artificial Intelligence and automation will shape the future development of X-ray reel counter systems. Enhancements to deep learning systems will make detection more precise and applicable to different conditions. Future systems will connect to cloud databases to monitor product supplies and predict supply chain needs. Real-time insights into component supplies will let manufacturers avoid shortages through better purchasing strategies.
Automation systems will steer the future development of electronics production. Better machine learning technology will automatically find and correct measurement errors for dependable results. Our smart factories will use Industry 4.0 technology to connect all their automated systems to work together to deliver optimised results.
Conclusion
X-ray reel counter systems track SMD components more effectively than manual processes, thanks to their superior speed and accuracy benefits. These systems prevent counting mistakes in production runs while lowering downtime and improving inventory performance. Their products meet ISO 9001, CE, ROHS, and FDA-CDRH standards to deliver safe and dependable solutions to manufacturers.
Businesses that upgrade to advanced X-ray reel counting equipment will enhance their inventory tracking processes and make their operations more efficient. The XC-01 X-ray reel counter system uses advanced technology to provide AI-driven counting and works with multiple reels while connecting to other systems easily. The importance of X-ray counting technology for electronics production will grow as automation systems develop further.
